S2600^®

M061

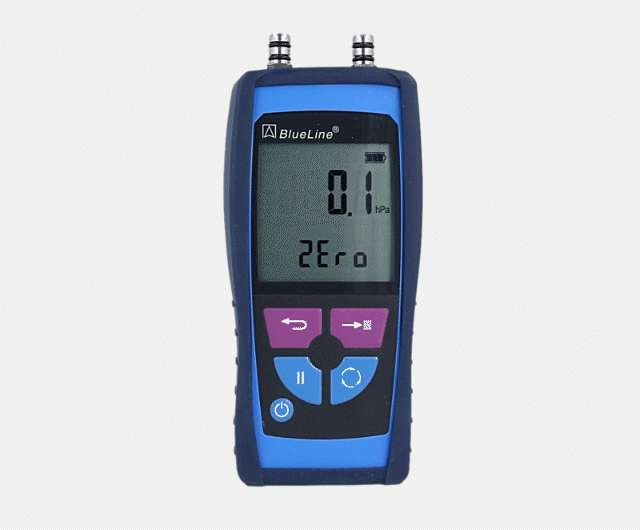

The high-precision S2600^® series instruments for pressure and differential pressure measurements.

Back

Four (differential) pressure measurement ranges
Measured values are displayed in 8 units: mbar, Pa, hPa, kPa, mmHg, inHg, psi, bar
Automatic zero calibration
Hold function for short-term freezing of measured value
Fully automatic device check, manual and automatic zero calibration during program start

The S2600^® pressure measuring instruments excel with the large and clearly structured display as well as with maximum user-friendliness. The excellent surface feel of the device in a robust protective sleeve optimally rounds off the outstanding product.

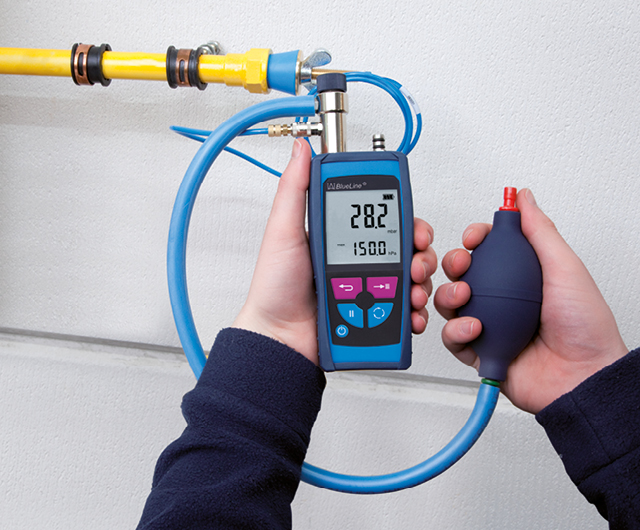

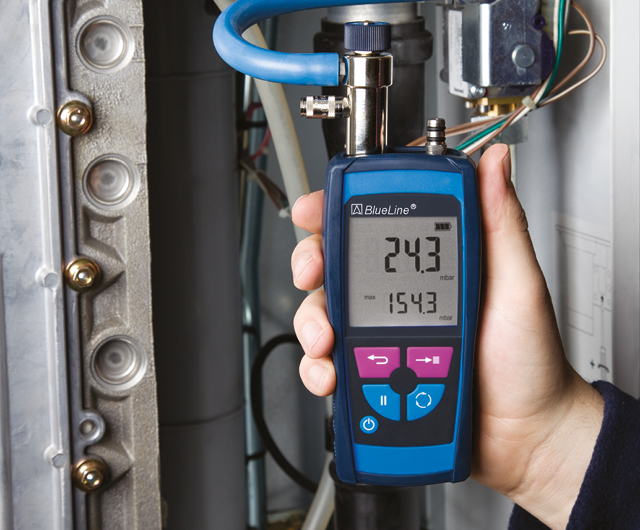

The high-quality S2600^® pressure measuring instruments are certified as per EN 50379-2 and can be used in a great variety of applications. Application examples: Measurement of gas flow pressure and static pressure on gas boilers, inspection of filters and gas lines, check of ventilation systems and liquid tanks, measurement of chimney draft and vacuum, etc.

Pressure meter S2600^® series
M061050160	S2602	up to 20 hPa
M061010110	S2601	up to 150 hPa
M061020110	S2610	up to 1 bar
M061040110	S2680	up to 8 bar

General data
Dimensions H x W x D	143 x 66 x 37 mm
Weight	approx. 250 g
Material housing	Plastic (PA)
Display type	7-segment LCD with LED backlights
Operating temperature	0 to 40 °C
Storage temperature	-20 to 50 °C
Power supply	2x 1,5 V alkaline batteries AA
Ingress protection rating	IP40 (for indoor use only EN IEC 60529)

Technical data I
Model	Measuring range	Overpressure	Connection type

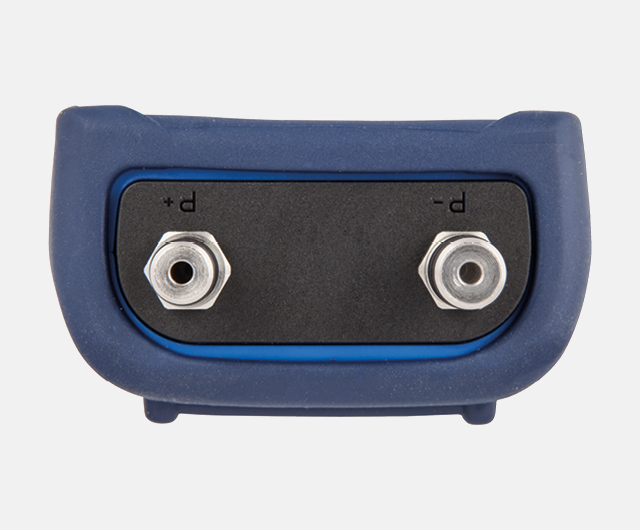

S2602	-10 to 20 hPa	max. 0.25 bar	2x Ø 8 mm
S2601	-20 to 150 hPa	max. 1.35 bar
S2610	-50 to 1,000 hPa	max. 3.5 bar
S2680	-150 to 8,000 hPa	max. 16 bar

Technical data II
Model	Resolution	Accuracy (% of reading)
S2602	0.001 hPa (< 9.999) 0.01 hPa (> 10.00)	±0.003 hPa ±1.0 % RDG ±1 digit
S2601	0.01 hPa (< 19.99) 0.1 hPa (>20.0)	±0.03 hPa ±1.0 % RDG ±1 digit
S2610	0.1 hPa (< 199.9) 1 hPa (> 200)	±0.3 hPa ±1.0 % RDG ±1 digit
S2680	1 hPa	±5 hPa ±1.0 % RDG ±1 digit
