Description:

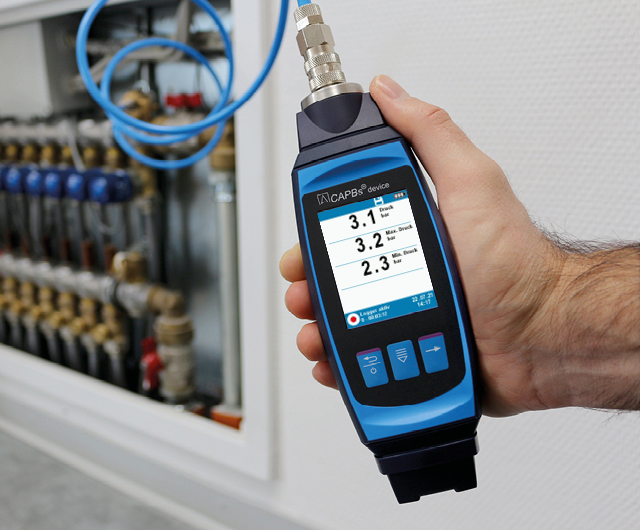

CAPBs® d-set PT70 - pressure logger is suitable for tightness and load test of gas lines, water pipes, floor heating or other systems up to 25 bar test pressure. Pressure transmitter for measurements in liquids and gaseous media.
| Scope of delivery |
|
| M093000010 |

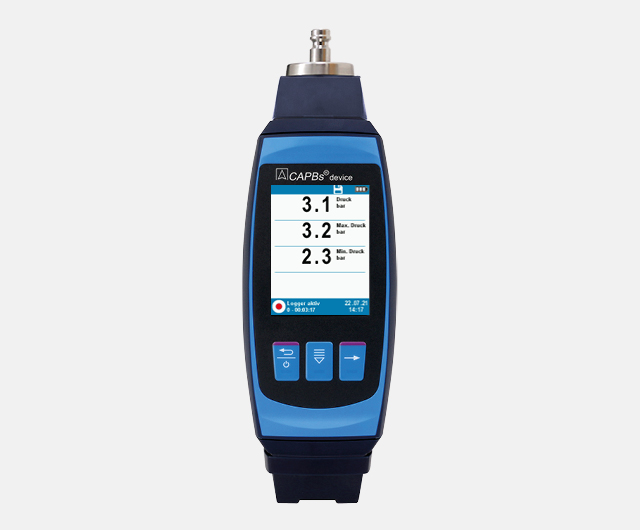

CAPBs® device with cover cap |
| M094003911 |

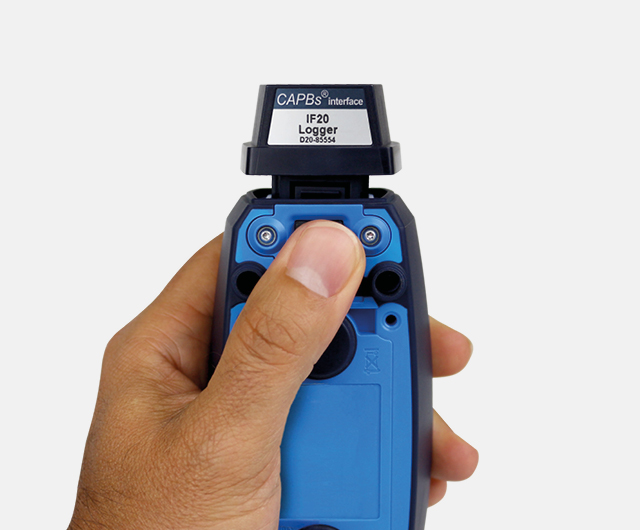

CAPBs® interface logger |
| 524697 |
Data cable |
| 523493 |
USB mains unit |
| M090142810 |
CAPBs® sens PT70 |
| 500695 | T-connector |
| 500687 |
Connection hose 300 mm with plug-in nipple DN5 |
| 500696 | Adapter for compressor connection |
| 511173 |
Test cap ¾" |
| 500904 |
i-Boxx |
| General data |
|
| Dimensions H x W x D |
72 x 365 x 314 mm |
| Weight |
approx. 1.609 g |
| Measurement units |
bar, kPa, psi |
| Medium |
Liquids and aggressive gases |
| Measuring range |
0 to 25 bar |
| Accuracy |
0.5 % full scale ±1 digit |
| Resolution |
0.1 bar |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
DN5 |
| Battery life |
32 h / 24 h (rechargeable) |
| Memory | 256 MB (600,000 readings) |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
Stage stop 3/8" and 3/4" for connecting the test set to the gas pipe
Stage stop plug 1/2" and 1" for connecting the test set to the gas pipe

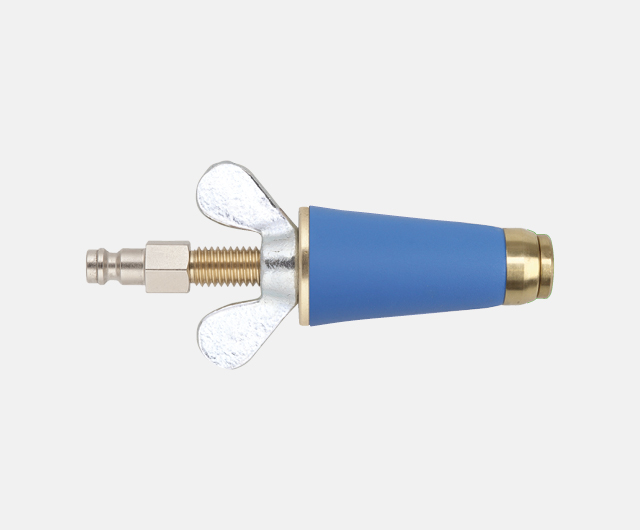

Conical test plug 1/2" to 3/4" for connecting test set to the gas pipe

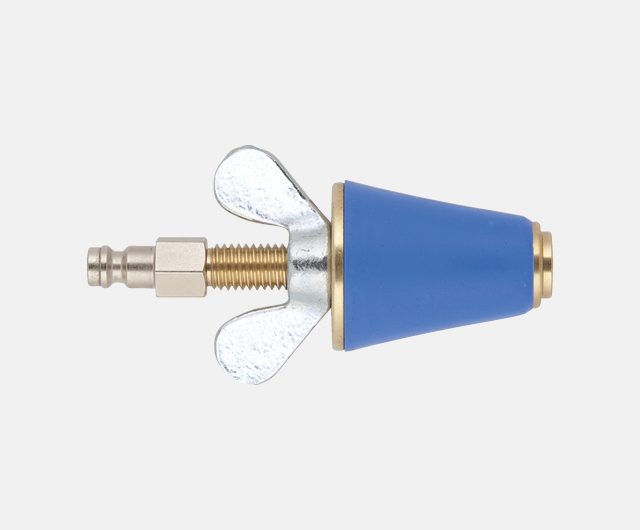

Conical test plug 3/4" to 1 1/4" for connecting test set to the gas pipe
Cylindrical test plug 1/2" for connecting test set to the gas pipe
Cylindrical test plug 3/4" for connecting test set to the gas pipe
Cylindrical test plug 1" for connecting test set to the gas pipe
Cylindrical test plug 1 1/4" for connecting test set to the gas pipe

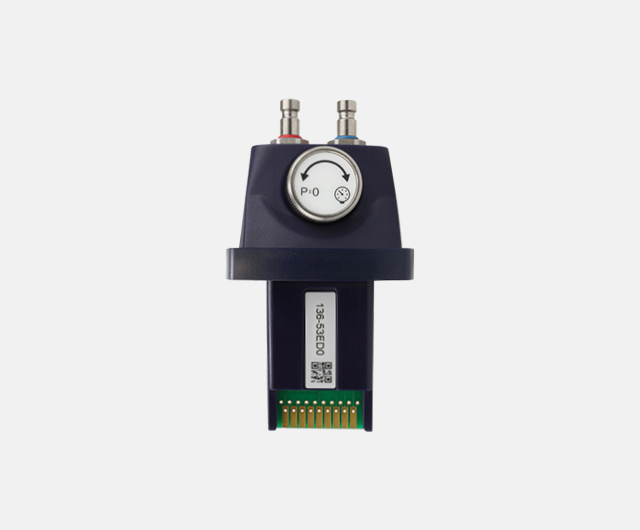

Sensor unit for measurement of the pressure, vacuum and differential pressure of gaseous and liquid media. This pressure sensor measures up to 7 bar.
