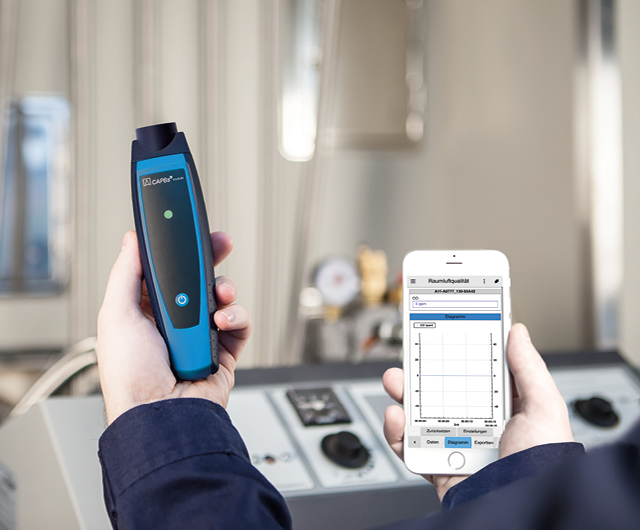

The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung

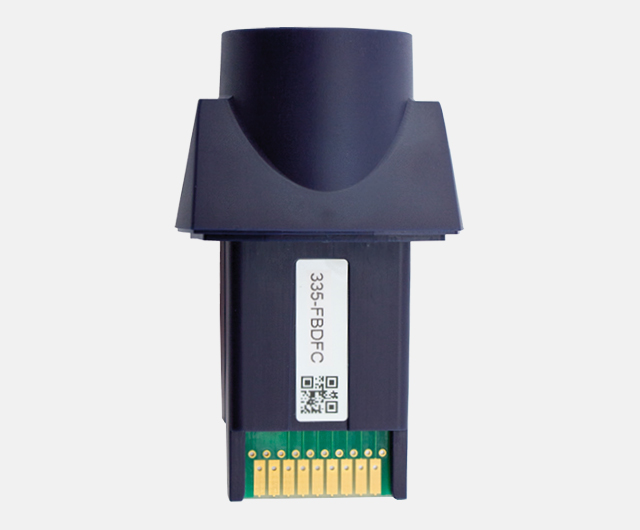

Sensor unit for fast and reliable detection of carbon monoxide (CO) in ambient air.
Application:
Sensor unit with electro-chemical sensor for fast and reliable detection of CO (carbon monoxide) in ambient air. The CO concentration is displayed by the evaluation unit as CO value in ppm; the CAPBs® measurement unit provides an audible signal when the alarm threshold is exceeded.
| General data |
|
| Dimensions H x W x D |
64 x 42 x 35 mm |
| Weight |
approx. 27 g |
| Measurement units |
ppm |
| Measuring range |
0 to 2000 ppm CO |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % (> 50 ppm) |
|
| Resolution |
1 ppm |
| Operating temperature |
0 to 40 °C |
| Operating pressure |
800 to 1200 hPa |
| Operating humidity |
15 to 95 % rh |
| Storage temperature |
-20 to 50 °C |
| Battery life |
45 h / 32 h (rechargeable) |
| BlueLine CAPBs program |
CO ambient |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
