The (differential) temperature of liquids, surfaces or ambient air can be measured reliably, quickly and accurately with TMD 7.
The dual-channel TMD 7 temperature measuring instrument excels with easy handling. The large LC display with two lines provides clear readings. No graphical gimmicks, but optimum display of measurement results.
TMD 7 can measure two temperatures simultaneously (for example, ambient air temperature and water temperature).
| General data |
|
| Dimensions H x W x D |
143 x 66 x 37 mm |
| Weight |
approx. 250 g |
| Material housing |
Plastic (PA) |
| Display type |
7-segment LCD with LED backlights |
| Measuring range |
-50 to 1,100 °C |
| Accuracy |
3.0 % RDG ±2.0 K (-50 to 0 °C) |
| 0.5 % RDG ±0.5 K (0 to 100 °C) |
|
| 0.5 % RDG ±1 K (100 to 1,100 °C) |
|
| Resolution |
0.1 °C (< 100 °C) |
| 1 °C (> 100 °C) |
|
| Operating temperature |
0 to 45 °C |
| Storage temperature |
-20 to 50 °C |
| Probe connection |
2x socket for thermocouple |
| Power supply |

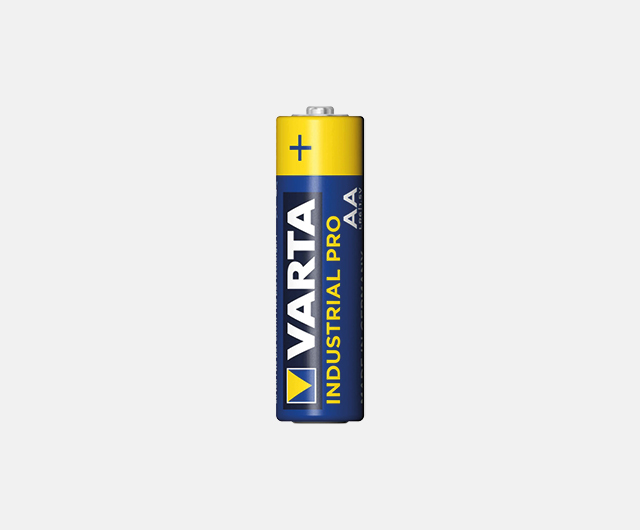

2x 1.5 V batteries AA |
Temperature transmitter with two standardised temperature socket type K. This allows for the connection of all type K temperature probes.
This temperature measuring instrument provides datalogging on microSD card. Also Bluetooth® or QR Code for data transmission to the EuroSoft® connect App.
