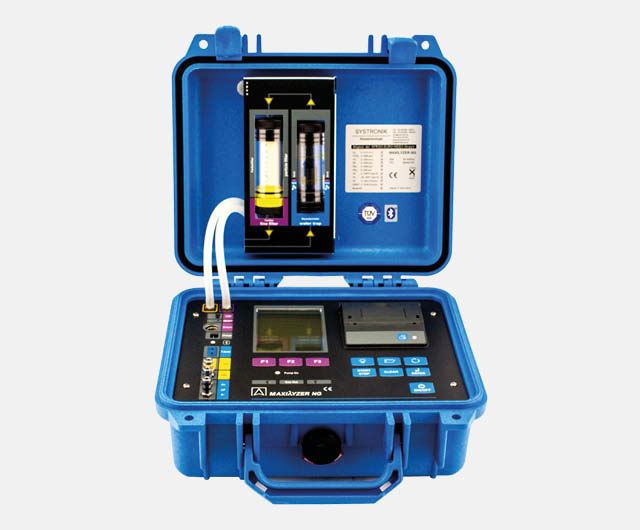

MAXILYZER® NG Plus is a handheld measuring instrument for industrial combustions, emission- and process monitoring. The measured data and calculations are clearly presented. High measuring accuracy, user-friendliness and reliability are some of the outstanding features of this innovative product. Accurate measurements of O2, CO/H2, CO40.000, NO, NO2, SO2, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point, NOx and CO2.
| General data |
|
| Dimensions H x W x D |
180 x 410 x 330 mm |
| Weight |
between 7000 and 7150 g |
| Display type |
LCD |
| Operating temperature |
5 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Data interface |
USB Option: Bluetooth® |
| Printer |
Internal thermal printer |
| Power supply |
External power supply and charger |
| Battery type |
NiMH-Akku 6 V/4,5 Ah |
| O2 (oxygen) |
|
| Measuring range |
0 to 21.0 vol.-% |
| Accuracy |
±0.2 vol.-% RDG |
| Resolution |
0.1 vol.-% |
| CO (carbon monoxide) with H2-compensation |
|
| Measuring range |
0 to 4,000 ppm |
| Accuracy |
±3 ppm (< 20 ppm) |
| ±5 % RDG (> 20 ppm) |
|
| Resolution |
1 ppm |
| CO2 (carbon dioxide) calculated |
|
| Measuring range |
0 to CO2 max. |
| Accuracy |
±0.2 vol.-% |
| Resolution |
0.1 vol.-% |
| Flue gas temperature |
|
| Measuring range |
0 to 1,000 °C |
| Resolution |
1 °F |
| Thermocouple |
Type K T/C |
| Ambient air temperature |
|
| Measuring range |
-20 to 200 °C |
| Resolution |
0.1 °F |
| Thermocouple |
Type K T/C |
| Draft/differential pressure |
|
| Measuring range |
±70 hPa (nominal) |
| ±28 inches of H2O | |
| ±130 hPa (maximal) |
|
| ±55 inches of H2O | |
| Accuracy | ±1 % RDG (nominal) |
| ±2 % RDG (maximal) | |
| Resolution |
0.01 hPa (0,01 H2O) |
| Option: COhigh (carbon dioxide) with H2-compensation |
|
| Measuring range | 0 to 40,000 ppm |
| Accuracy | ±5 % RDG ±1 digit |
| Resolution | 0.01 vol.-% |
| Option: NO2 (nitrogen dioxide) |
|
| Measuring range |
0 to 500 ppm |
| Accuracy |
±5 ppm (< 100 ppm) |
| ±5 % RDG (> 100 ppm) |
|
| Resolution |
1 ppm |
| Option: SO2 (sulfur dioxide) |
|
| Measuring range |
0 to 5,000 ppm |
| Accuracy |
±10 ppm (< 200 ppm) |
| ±5 % RDG (> 200 ppm) |
|
| Resolution |
1 ppm |
| Option: NO (nitrogen oxide) |
|
| Measuring range |
0 to 5,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
