Set for determining water quality and assessing the system water in heating systems (VDI 2035).
Application
CAPBs® sens WQ11 simultaneously determines the electrical conductivity (μS/cm) and hardness (°dH) with a single measurement. In addition, the TDS value (total dissolved solids in the water), salinity and temperature can be measured. Thanks to automatic measuring range switching, the conductivity can be measured with a high measuring accuracy within a large measuring range.
| Scope of delivery | |
| M090251310 |

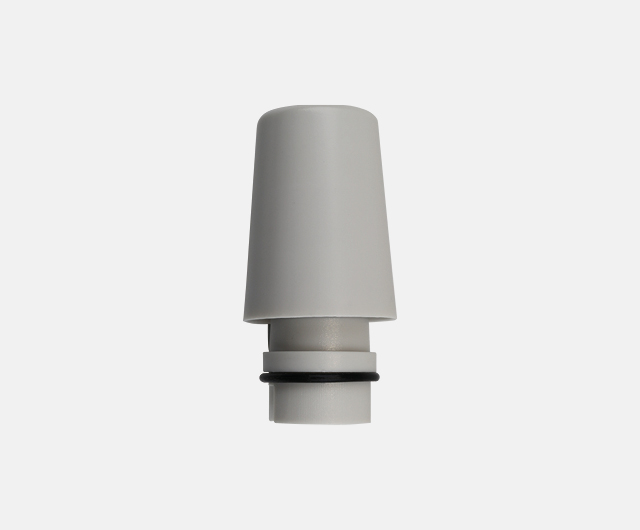

CAPBs® sens WQ11 conductivity |
| 524407 |

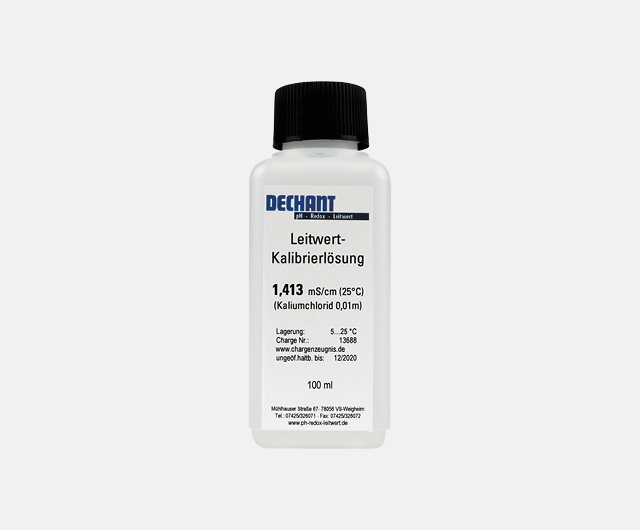

Conductivity calibration solution 1,413 mS, 100 ml |
| 524408 |

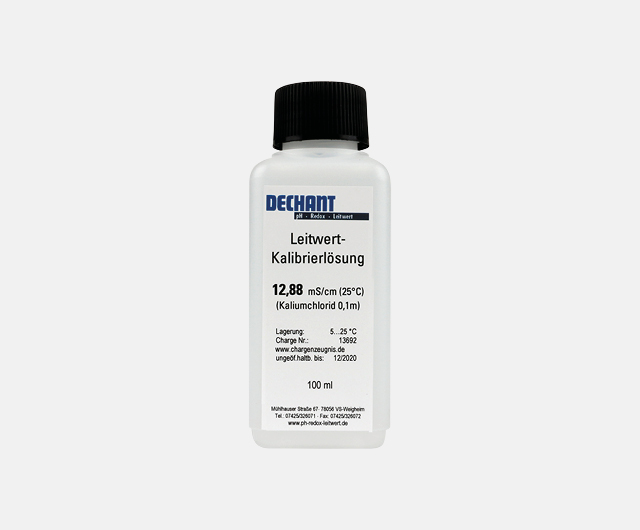

Conductivity calibration solution 12,88 mS, 100 ml |
| 524412 |

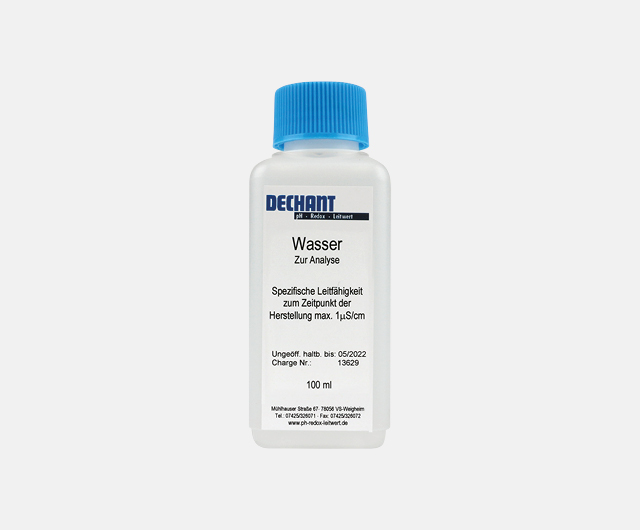

Cleaning water, 100 ml |
| 524683 |

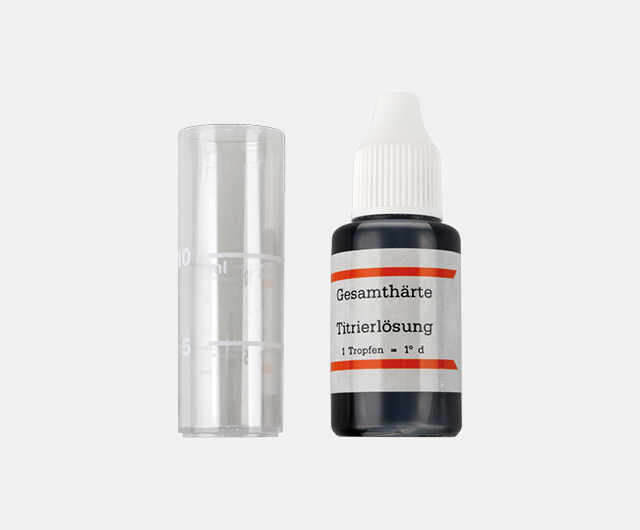

Hardness measuring cutlery, single pack |
| 524538 |
Cup Centering |
| 524531 |
Tissue |
| 523472 |
Batteries Micro AAA LR03 1,5V |
| 511152 |
Cup for conductivity calibration solution 1,413 mS |
| 511153 |
Cup for conductivity calibration solution 12,88 mS |
| 511154 |
Cup for cleaning water |
| 511155 |
Cup for sample |
| 500907 |
Case |
| Product flyer |
Interesting facts
|
|
 |
 |
|
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
For measuring water hardness in degrees of German hardness (°dH)
The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.
Universal base handle for all CAPBs® sens sensor units, with direct Bluetooth® connection to the EuroSoft® live app, which is available on both the Android and iOS platforms.
