Top quality dust measuring set for determining the mass concentration of particles/dust and for monitoring the limit values of particulate matter on solid fuel systems.

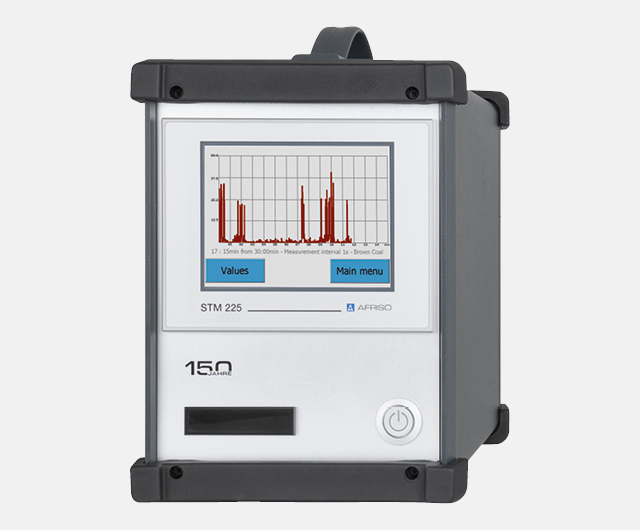

The STM 225 Black Edition + MULTILYZER® STx Set perform accurate determination of the mass concentration of particles/dust on solid-fuel systems such as pallets or wood fired systems.
| Scope of delivery | |
| 570200A |
STM 225 Black Edition |
| 570201 | Transport bag for STM 225 |
| 570203 | Probe ENS-W 300 mm, curved |
| 570205A | Heated hose ENL-H 2 |

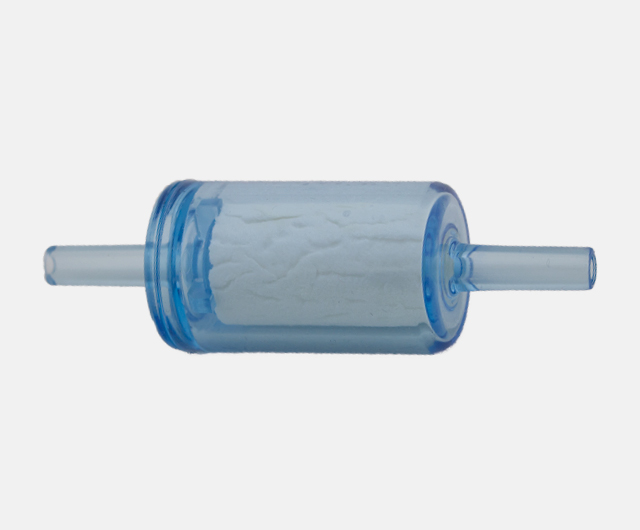

| 523565 | Air filter |
| 570210 | Cleaning set for STM 225 |
| 500208 | Filter set |
| M04741217 |
MULTILYZER® STx (O2, CO/H2, CO+, P-D7, Bluetooth®) |
| 500296 |
Hose kit-adapter 2000 mm |
| 521844 |
Air sensor |
| 511035 | microSD card 4 GB with card reader |
| 523493 |
Power supply unit |
| 523506 |
Charging cable |
| General data | |
| Measuring range |
0 to 300 mg/m3 dust |
| Measured values (via MULTILYZER® STx) |
O2: 0 to 21 vol.-% |
| CO/H2: 0 to 12.000 mg/m3 |
|
| CO: 0 to 50.000 mg/m3 |
|
| Resolution |
0.1 mg/m3 |
| Power supply |
AC 230 V, 50 Hz |
| Ingress protection rating |
IP40 (EN 60529) |
The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
The EuroSoft® connect software allows you to transmit measured values to the PC via microSD card and control the instrument remote via Bluetooth®.
Compact infrared high speed thermal printer with magnets on the rear side
The TÜV-tested MULTILYZER® STx is a handheld measuring instrument for industrial combustion, emission and process monitoring.
TÜV-tested dust measuring instrument for solid fuel systems such as pellets or wood fired systems for determining the mass concentration of particles/dust and for monitoring the limit values of particulate matter.
