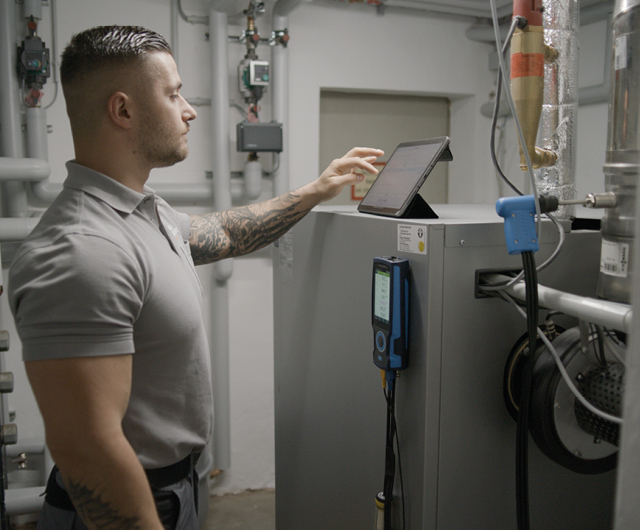

The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung

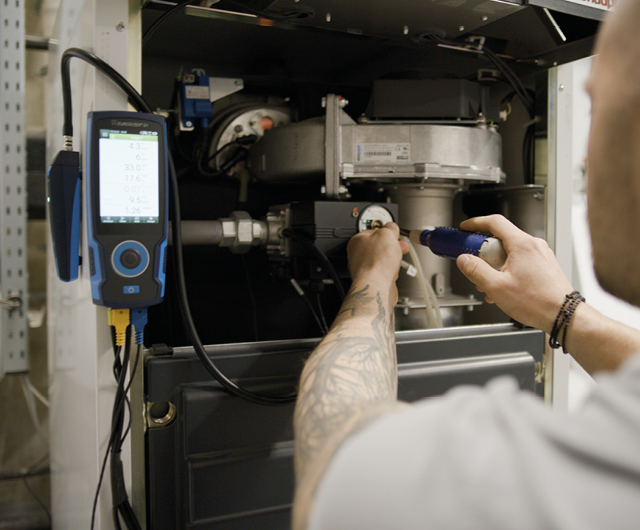

Professional and robust flue gas analyzer set to service and inspect oil, gas and pellets-fired heating systems as well for NOx measurements (e.g. for CHPs).
The EUROLYZER® S1 NOx Set perform accurate measurements of O2, CO/H2, NO, temperatures, pressure (draft) as well as precise calculation of various parameters such as NOx, lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.
| Scope of delivery |
|
| M05230210 | EUROLYZER® S1 (O2E, CO/H2+, NO, D7, P8, Bluetooth®) |
| 510921 |
Basic handle with draft, 2400 mm |
| 523228 |
Interchangeable probe 180 mm |
| 525104 |
Power supply unit |
| 524697 |
Charging cable |
| 521844 |
Air sensor |
| 500208 |
Filter set |
| 522952 |
Silicon hose |
| 525044 | Display protection foil |
| 511315 |
Case |
| O2 (oxygen) |
|
| Measuring range |
0 to 21.0 vol.-% |
| Accuracy |
±0.2 vol.-% RDG |
| Resolution |
0.1 vol.-% |
| Response delay (t90) | < 30 seconds |
| CO (carbon monoxide) with H2-compensation |
|
| Measuring range |
0 to 4,000 ppm (max. 10,000) |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) | < 60 seconds |
| CO2 (carbon dioxide) |
|
| Measuring range |
0 to CO2 max. |
| Accuracy |
±0.2 vol.-% |
| Resolution |
0.1 vol.-% |
| Response delay (t90) | < 30 seconds |
| Flue gas temperature |
|
| Measuring range |
0 to 1,150 °C |
| Accuracy |
±1 °C + 1 digit (< 300 °C) |
| ±1 % RDG (> 300 °C) |
|
| Resolution |
0.1 °C |
| Combustion air temperature |
|
| Measuring range |
-20 to 200 °C |
| Accuracy |
±3 °C + 1 digit (-20 to 0 °C) |
| ±1 °C + 1 digit (0 to 200 °C) |
|
| Resolution |
0.1 °C |
| Option: Draft/differential pressure |
|
| Measuring range |
±70 hPa (draft) |
| ±150 hPa (diff. pressure) | |
| Accuracy | ±0.02 hPa (< 2.00 hPa) |
| ±1 % RDG (> 2.00 hPa) |
|
| Resolution |
0.01 hPa (< 20 hPa) |
| 0.1 hPa (> 20 hPa) |
|
| Max. overload | 1350 hPa |
| Response delay (t90) | < 10 seconds |
| Option: Pitot | |
| Measuring range | 0.5 to 70 m/s |
| Accuracy | ±0.8 m/s |
| Resolution | 0.1 m/s |
| Response delay (t90) | < 20 seconds |
| Option: NO (nitrogen oxide) |
|
| Measuring range |
0 to 5,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: NOlow (nitrogen oxide low) |
|
| Measuring range |
0 to 300 ppm |
| Accuracy |
±2 ppm (< 40 ppm) |
| ±10 % RDG (> 40 ppm) | |
| Resolution |
0.1 ppm |
| < 60 seconds | |
| Option: COhigh (carbon monoxide high) | |
| Measuring range |
0 to 4.0 Vol.-% (= 40,000 ppm) |
| Accuracy |
±10 ppm |
| ±5 % RDG | |
| Resolution | 0.001 Vol.-% with CO/H2 sensor |
| 1 ppm without CO/H2 sensor | |
| Response delay (t90) | < 60 seconds |
| Option: NO2 (nitrogen dioxide) | |
| Measuring range | 0 to 500 ppm |
| Accuracy |
±10 ppm (< 100 ppm) |
| ±10 % RDG (> 100 ppm) | |
| Resolution | 0.1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: SO2 (sulfur dioxide) | |
| Measuring range | 0 to 5,000 ppm |
| Accuracy |
±10 ppm (< 200 ppm) |
| ±5 % RDG (> 200 ppm) | |
| Resolution | 1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: SO2low (sulfur dioxide) | |
| Measuring range | 0 to 2,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±10 % RDG (> 50 ppm) | |
| Resolution | 0.1 ppm |
| Response delay (t90) | < 60 seconds |
|
Set overview
|
 |

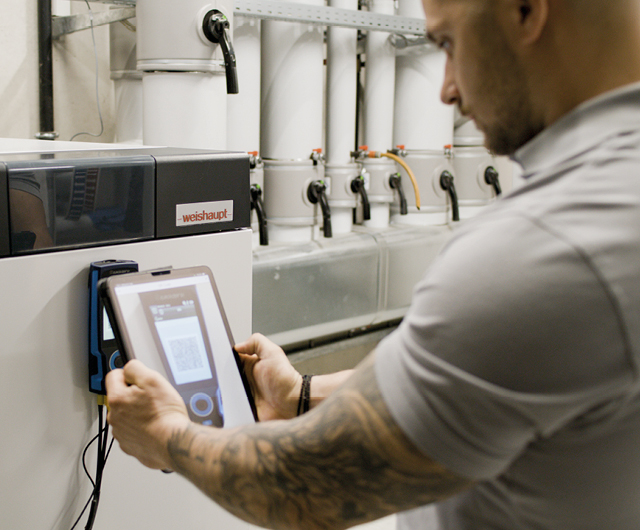

The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
The EuroSoft® connect software allows you to transmit measured values to the PC via microSD card and control the instrument remote via Bluetooth®.
