Robust and high quality flue gas analyzer set to setup oil, gas and solid heating systems.
The EUROLYZER® S1 Allrounder Set perform accurate measurements of O2, COhigh, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.
| Scope of delivery |
|
| M05231013 | EUROLYZER® S1 (O2E, COhigh, draft, Bluetooth®) |
| 500268 | Flue gas probe with draft, 170 mm |
| 500190 | Condensate filter cartridge |
| 523493 |

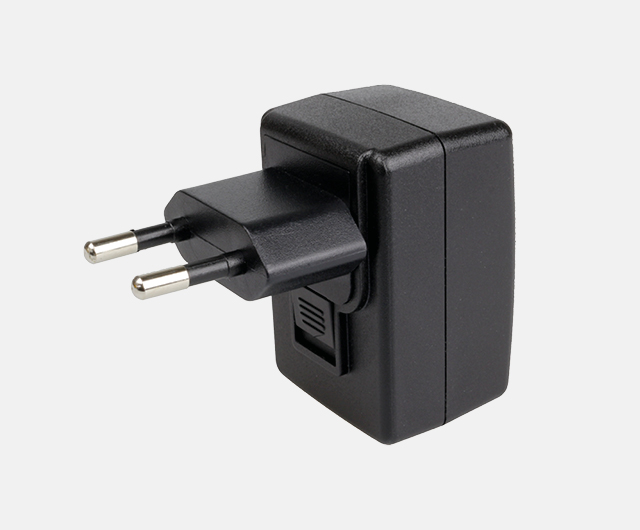

Power supply unit |
| 524697 |
Charging cable |
| 521844 |
Air sensor |
| 500208 |

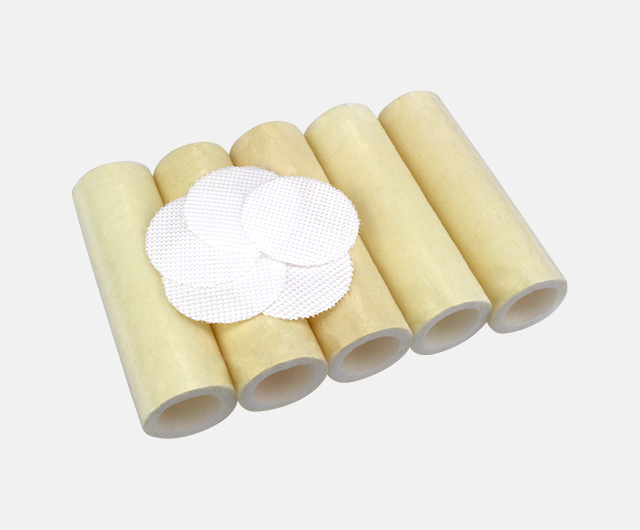

Filter set |
| 500900 |
L-Boxx case with document compartment |
| O2 (oxygen) |
|
| Measuring range |
0 to 21.0 vol.-% |
| Accuracy |
±0.2 vol.-% RDG |
| Resolution |
0.1 vol.-% |
| Response delay (t90) | < 30 seconds |
| CO (carbon monoxide) with H2-compensation |
|
| Measuring range |
0 to 4,000 ppm (max. 10,000) |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) | < 60 seconds |
| CO2 (carbon dioxide) |
|
| Measuring range |
0 to CO2 max. |
| Accuracy |
±0.2 vol.-% |
| Resolution |
0.1 vol.-% |
| Response delay (t90) | < 30 seconds |
| Flue gas temperature |
|
| Measuring range |
0 to 1,150 °C |
| Accuracy |
±1 °C + 1 digit (< 300 °C) |
| ±1 % RDG (> 300 °C) |
|
| Resolution |
0.1 °C |
| Combustion air temperature |
|
| Measuring range |
-20 to 200 °C |
| Accuracy |
±3 °C + 1 digit (-20 to 0 °C) |
| ±1 °C + 1 digit (0 to 200 °C) |
|
| Resolution |
0.1 °C |
| Option: Draft/differential pressure |
|
| Measuring range |
±70 hPa (draft) |
| ±150 hPa (diff. pressure) | |
| Accuracy | ±0.02 hPa (< 2.00 hPa) |
| ±1 % RDG (> 2.00 hPa) |
|
| Resolution |
0.01 hPa (< 20 hPa) |
| 0.1 hPa (> 20 hPa) |
|
| Max. overload | 1350 hPa |
| Response delay (t90) | < 10 seconds |
| Option: Pitot | |
| Measuring range | 0.5 to 70 m/s |
| Accuracy | ±0.8 m/s |
| Resolution | 0.1 m/s |
| Response delay (t90) | < 20 seconds |
| Option: NO (nitrogen oxide) |
|
| Measuring range |
0 to 5,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: NOlow (nitrogen oxide low) |
|
| Measuring range |
0 to 300 ppm |
| Accuracy |
±2 ppm (< 40 ppm) |
| ±10 % RDG (> 40 ppm) | |
| Resolution |
0.1 ppm |
| < 60 seconds | |
| Option: COhigh (carbon monoxide high) | |
| Measuring range |
0 to 4.0 Vol.-% (= 40,000 ppm) |
| Accuracy |
±10 ppm |
| ±5 % RDG | |
| Resolution | 0.001 Vol.-% with CO/H2 sensor |
| 1 ppm without CO/H2 sensor | |
| Response delay (t90) | < 60 seconds |
| Option: NO2 (nitrogen dioxide) | |
| Measuring range | 0 to 500 ppm |
| Accuracy |
±10 ppm (< 100 ppm) |
| ±10 % RDG (> 100 ppm) | |
| Resolution | 0.1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: SO2 (sulfur dioxide) | |
| Measuring range | 0 to 5,000 ppm |
| Accuracy |
±10 ppm (< 200 ppm) |
| ±5 % RDG (> 200 ppm) | |
| Resolution | 1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: SO2low (sulfur dioxide) | |
| Measuring range | 0 to 2,000 ppm |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±10 % RDG (> 50 ppm) | |
| Resolution | 0.1 ppm |
| Response delay (t90) | < 60 seconds |
|
Set overview
|
 |
The free EuroSoft® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.

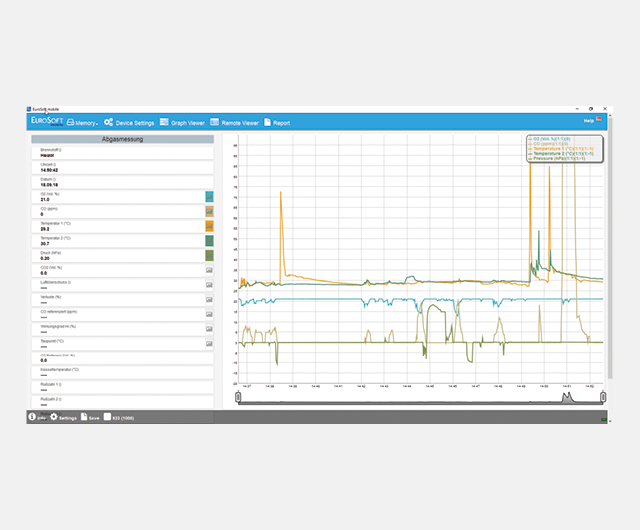

The EuroSoft® connect software allows you to transmit measured values to the PC via microSD card and control the instrument remote via Bluetooth®.
Compact infrared high speed thermal printer with magnets on the rear side
Flue gas analyzer set for all fuels to set up heating systems.
Professional and robust flue gas analyzer set to service and inspect oil, gas and pellets-fired heating systems as well for NOx measurements (e.g. for CHPs).
Professional and robust flue gas analyzer set for servicing and inspecting oil, gas and pellets-fired heating systems.
