Flue gas analyzer kit for all fuels to set up heating systems as well for NOx measurements (e.g. for CHPs).
The BLUELYZER® C1 NOX Set perform accurate measurments of O2, CO+ (up to 20,000 ppm), NOX, draft, pressure and temperatures as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.
| Scope of delivery | |
| M05325013 | BLUELYZER® C1 (O2, CO+, NOlow, Bluetooth®) |
| 500268.4 | Flue gas probe 170 mm |
| 500192 |

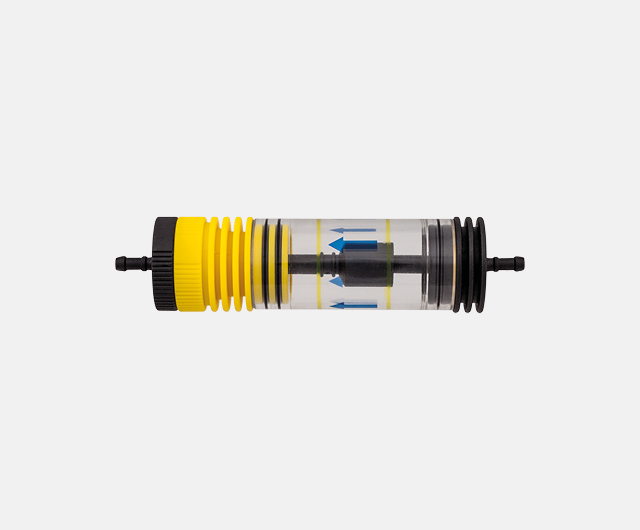

Condensate filter cartridge |
| 523493 | Power supply unit |
| 524697 | Charging cable |
| 521844 | Air sensor |
| 522952 | Silicon tube for pressure measurements |
| 500214 | Filter set |
| 511304 | Case |
| O2 (oxygen) |
|
| Measuring range |
0 to 21.0 vol.-% |
| Accuracy |
±0.2 vol.-% RDG |
| Resolution |
0.1 vol.-% |
| Response delay (t90) |
< 30 seconds |
| CO (carbon monoxide) |
|
| Measuring range | 0 to 2,000 ppm (max. 6,000) |
| Accuracy |
±5 ppm (< 50 ppm) |
| ±5% RDG (> 50 ppm) |
|
| Resolution |
1 ppm |
| Response delay (t90) |
< 60 seconds |
| Flue gas temperature |
|
| Measuring range |
0 to 1,150 °C |
| Accuracy |
±1 °C + 1 digit (< 300 °C) |
| ±1 % RDG (> 300 °C) | |
| Resolution |
0.1 °C |
| Response delay (t90) |
< 30 seconds |
| Combustion air temperature |
|
| Measuring range |
-20 to 200 °C |
| Accuracy |
±3 °C + 1 digit (-20 < 0 °C) |
| ±1 °C + 1 digit (0 < 200 °C) | |
| Resolution |
0.1 °C |
| Response delay (t90) |
< 30 seconds |
| Draft/pressure |
|
| Measuring range |
±70 hPa (draft) |
| ±150 hPa (pressure) | |
| Accuracy | ±0.02 hPa (< 2.00 hPa) |
| ±1 % RDG (> 2.00 hPa) |
|
| Resolution |
0.01 hPa (< 20 hPa) |
| 0.1 hPa (> 20 hPa) |
|
| Max. overload | 1,350 hPa |
| Response delay (t90) | < 10 seconds |
| Option: COhigh (carbon monoxide) | |
| Measuring range | 0 to 2.0 vol.-% |
| Accuracy | ±10 ppm (< 200 ppm) |
| ±5 % RDG (> 200 ppm) | |
| Resolution | 1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: NO (nitrogen oxide) | |
| Measuring range | 0 to 5,000 ppm |
| Accuracy | ±5 ppm (< 50 ppm) |
| ±5 % RDG (> 50 ppm) | |
| Resolution | 1 ppm |
| Response delay (t90) | < 60 seconds |
| Option: NOlow (nitrogen oxide low)) | |
| Measuring range | 0 to 300 ppm |
| Accuracy | ±2 ppm (< 40 ppm) |
| ±10 % RDG (> 40 ppm) | |
| Resolution | 0.1 ppm |
| Response delay (t90) | < 60 seconds |
|
Set overview
|
|
 |
|
