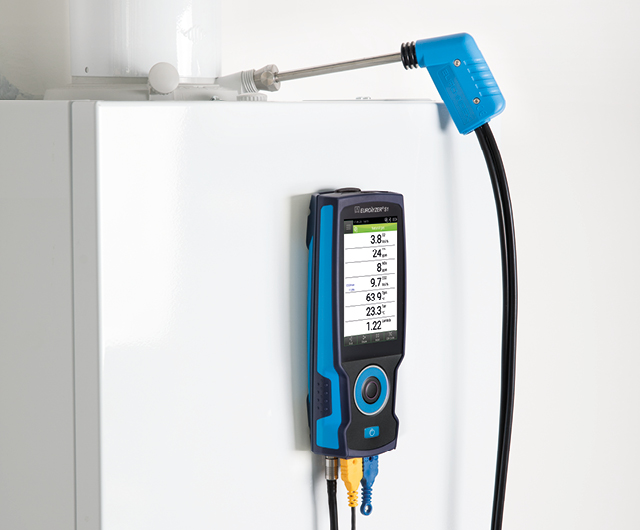

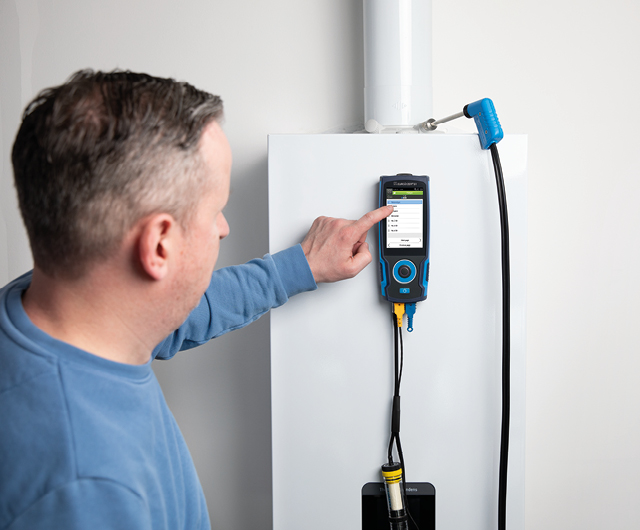

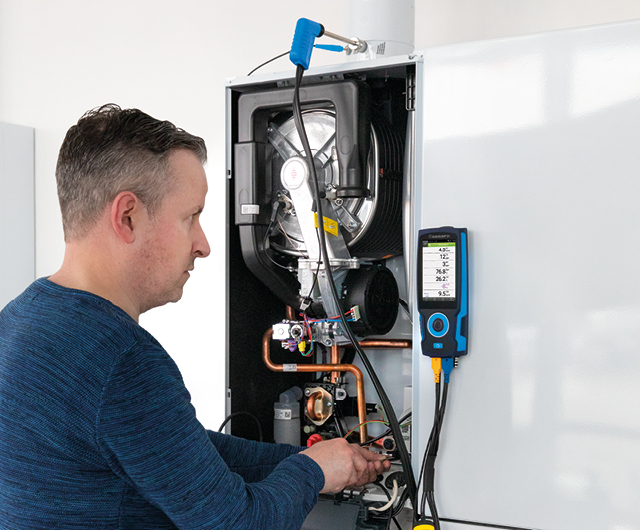

EUROLYZER^® S1 Starter Set (O₂E, CO/H₂-compensated, draft)

P00140

Robust and high quality flue gas analyzer set to setup oil, gas and pellets-fired heating systems.

Back

Large HiRes display offers best readability and clear menu navigation, optimally protected by scratch-resistant armored glass.
Latest ECOx sensor technology with long service life, optimized calibration phase and short response time
Accurate H₂-compensated CO cell with measuring range up to 10,000 ppm
Features Bluetooth^® and QR code data transmission to the EuroSoft^® connect App
Extendable with CAPBs^® units and high-quality accessories for all types of service measuring tasks

The EUROLYZER^® S1 Starter Set perform accurate measurements of O₂, CO/H₂, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO₂.

Scope of delivery
M05229110	EUROLYZER^® S1 (O₂E, CO/H₂+, draft, Bluetooth^®)
500268	Flue gas probe with draft, 170 mm
500190	Condensate filter cartridge

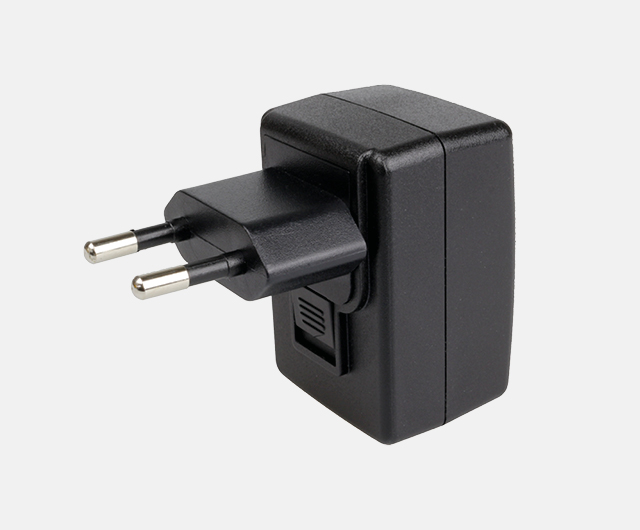

523493	Power supply unit
524697	Charging cable
521844	Air sensor
500208	Filter set
500900	L-Boxx case with document compartment

O₂ (oxygen)
Measuring range	0 to 21.0 vol.-%
Accuracy	±0.2 vol.-% RDG
Resolution	0.1 vol.-%
Response delay (t90)	< 30 seconds
CO (carbon monoxide) with H₂-compensation
Measuring range	0 to 4,000 ppm (max. 10,000)
Accuracy	±5 ppm (< 50 ppm)
Accuracy	±5 % RDG (> 50 ppm)
Resolution	1 ppm
Response delay (t90)	< 60 seconds
CO₂ (carbon dioxide)
Measuring range	0 to CO₂ max.
Accuracy	±0.2 vol.-%
Resolution	0.1 vol.-%
Response delay (t90)	< 30 seconds
Flue gas temperature
Measuring range	0 to 1,150 °C
Accuracy	±1 °C + 1 digit (< 300 °C)
Accuracy	±1 % RDG (> 300 °C)
Resolution	0.1 °C
Combustion air temperature
Measuring range	-20 to 200 °C
Accuracy	±3 °C + 1 digit (-20 to 0 °C)
Accuracy	±1 °C + 1 digit (0 to 200 °C)
Resolution	0.1 °C
Option: Draft/differential pressure
Measuring range	±70 hPa (draft)
Measuring range	±150 hPa (diff. pressure)
Accuracy	±0.02 hPa (< 2.00 hPa)
Accuracy	±1 % RDG (> 2.00 hPa)
Resolution	0.01 hPa (< 20 hPa)
Resolution	0.1 hPa (> 20 hPa)
Max. overload	1350 hPa
Response delay (t90)	< 10 seconds
Option: Pitot
Measuring range	0.5 to 70 m/s
Accuracy	±0.8 m/s
Resolution	0.1 m/s
Response delay (t90)	< 20 seconds
Option: NO (nitrogen oxide)
Measuring range	0 to 5,000 ppm
Accuracy	±5 ppm (< 50 ppm)
Accuracy	±5 % RDG (> 50 ppm)
Resolution	1 ppm
Response delay (t90)	< 60 seconds
Option: NO_low (nitrogen oxide low)
Measuring range	0 to 300 ppm
Accuracy	±2 ppm (< 40 ppm)
Accuracy	±10 % RDG (> 40 ppm)
Resolution	0.1 ppm
	< 60 seconds
Option: CO_high (carbon monoxide high)
Measuring range	0 to 4.0 Vol.-% (= 40,000 ppm)
Accuracy	±10 ppm
Accuracy	±5 % RDG
Resolution	0.001 Vol.-% with CO/H₂ sensor
Resolution	1 ppm without CO/H₂ sensor
Response delay (t90)	< 60 seconds
Option: NO₂ (nitrogen dioxide)
Measuring range	0 to 500 ppm
Accuracy	±10 ppm (< 100 ppm)
Accuracy	±10 % RDG (> 100 ppm)
Resolution	0.1 ppm
Response delay (t90)	< 60 seconds
Option: SO₂ (sulfur dioxide)
Measuring range	0 to 5,000 ppm
Accuracy	±10 ppm (< 200 ppm)
Accuracy	±5 % RDG (> 200 ppm)
Resolution	1 ppm
Response delay (t90)	< 60 seconds
Option: SO_2low (sulfur dioxide)
Measuring range	0 to 2,000 ppm
Accuracy	±5 ppm (< 50 ppm)
Accuracy	±10 % RDG (> 50 ppm)
Resolution	0.1 ppm
Response delay (t90)	< 60 seconds

Set overview

EuroSoft^® connect for iOS and Android

The free EuroSoft^® connect App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth^®.
