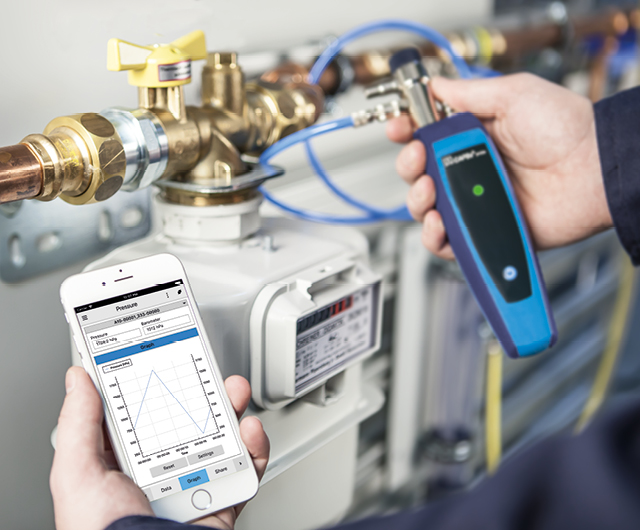

The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Bewerbung
Bewerbung

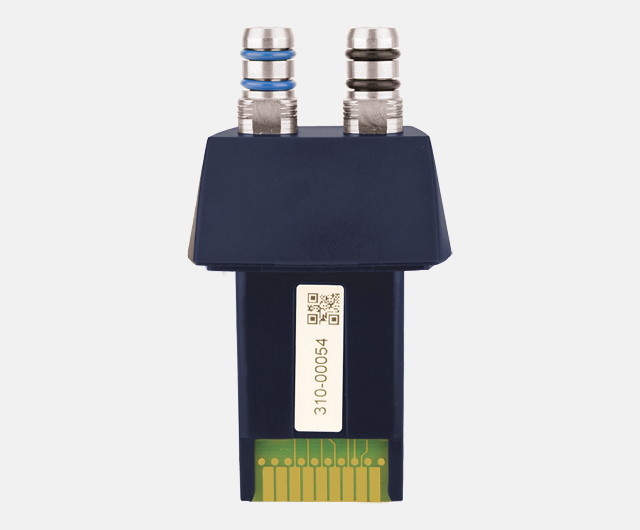

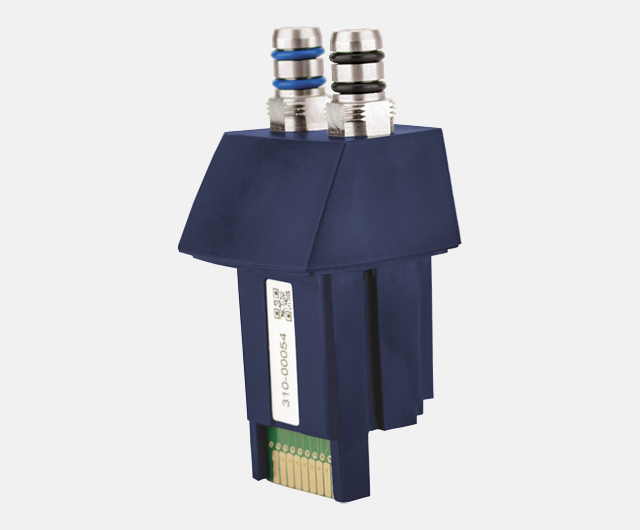

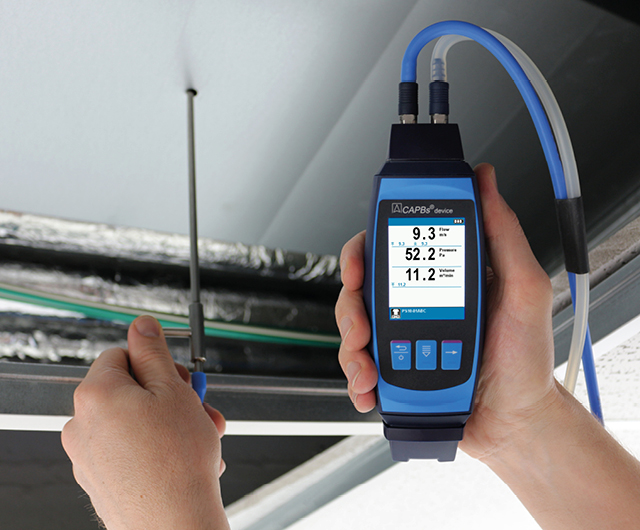

Sensor unit for measuring fine pressure and differential pressure up to 20 hPa. Also designed for accurate air-flow measurements using a Pitot tube.
Application
Sensor unit for measurement of pressure, vacuum and differential pressure of non-corrosive, gaseous, dry media. Manual correction of the zero point allows to double the measuring range. The high quality sensors are extremely accurate, orientation independent and temperature-compensated.
| General data |
|
| Dimensions H x W x D |
74 x 42 x 35 mm |
| Weight |
approx. 34 g |
| Measurement units |
hPa, mbar, Pa, mmWs, mmHg, inHg |
| Medium |
non-aggressive gases |
| Measuring range |
-20 to 20 hPa |
| 0.5 to 50 m/s |
|
| Accuracy |
±0.003 hPa or 0.5 % RDG ±1 digit |
| ±0.3 m/s |
|
| Resolution |
0.001 hPa |
| 0.1 m/s |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |

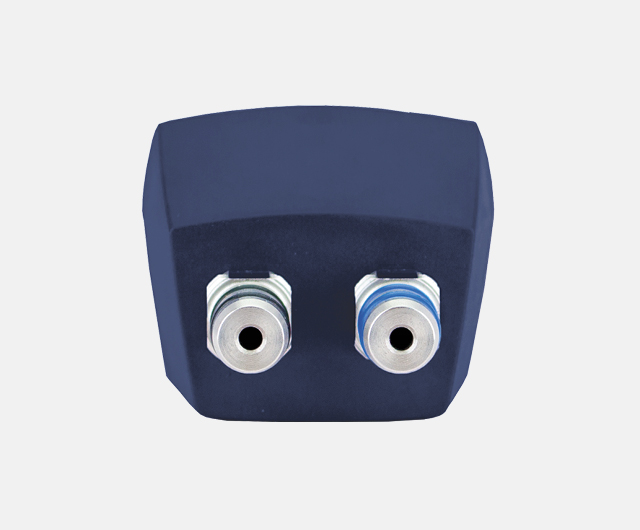

| Connection |
2x D8 |
| Battery life |
45 h / 32 h (rechargeable) |
| BlueLine CAPBs program |
Pressure, Pressure loss, Tightness test, 4-Pa-Test, Pitot |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
Product flyer
|
Connection overview | |
 |
 |
|
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.
Hose kit for 4 Pa measurement in combination with the pressure meter S4602 ST or CAPBs® sens PS10
For measuring flow velocities, e.g. in ventilation ducts or process air

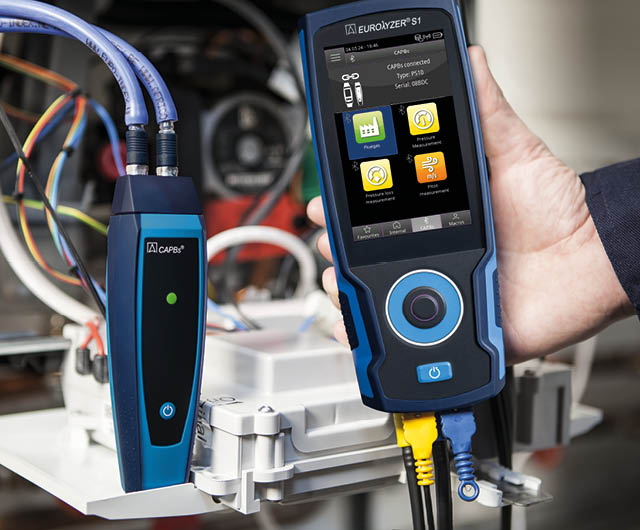

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.
