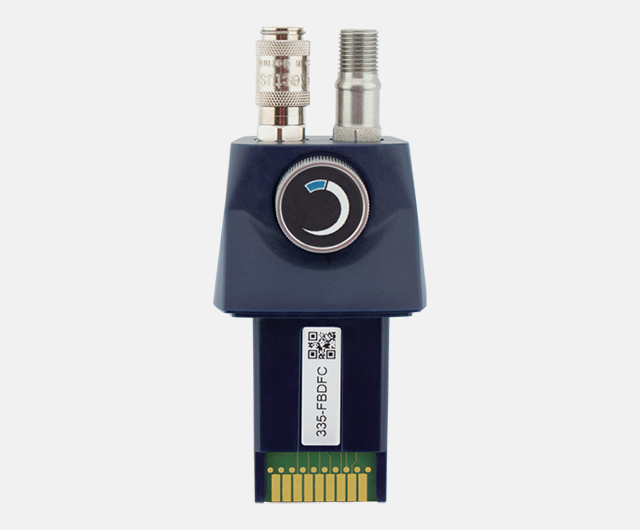

Sensor unit for tightness and load testing up to 180 mbar test pressure. The CAPBs® sens PS22 is extremely accurate, orientation independent and temperature-compensated.
Application
Sensor unit for measurement of pressure and vacuum of non-corrosive, gaseous, dry media. Manual correction of the zero point allows to double the measuring range. The high quality sensors are extremely accurate, orientation independent and temperature-compensated. This pressure sensor measures up to 180 mbar; it features a pressure test valve.
| General data |
|
| Dimensions H x W x D |
89 x 42 x 35 mm |
| Weight |
approx. 100 g |
| Measurement units |
hPa, mbar, kPa, Pa, mmWs, mmHg, bar, inHg, psi |
| Medium |
non-aggressive gases |
| Measuring range |
180 mbar |
| Accuracy |
±0.03 mbar or 0.5 % RDG ±1 digit |
| Resolution |
0.01 mbar (< 100) |
| 0.1 mbar (> 100) |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |

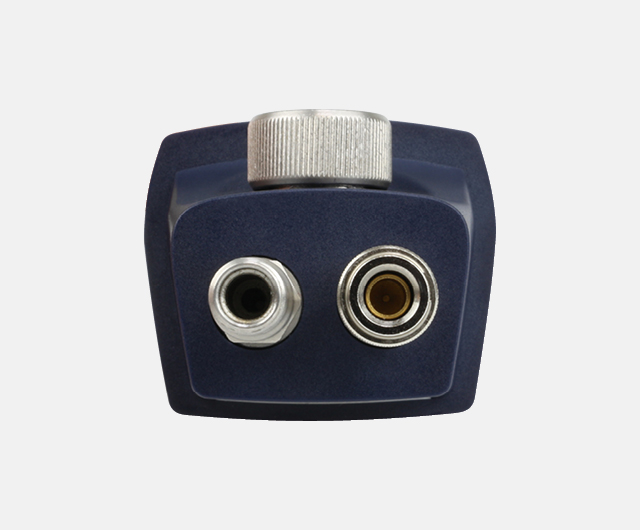

pressure test valve DN2.7 |
| Battery life |
CAPBs moduel: 45 h / 32 h (rechargeable) |
| CAPBs device: 15 h |
|
| BlueLine CAPBs program |
Pressure, Pressure loss, Tightness test, Leakage rate measurement |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
