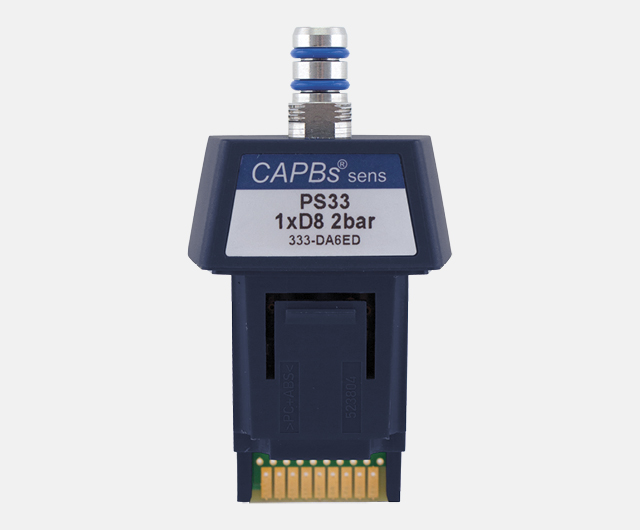

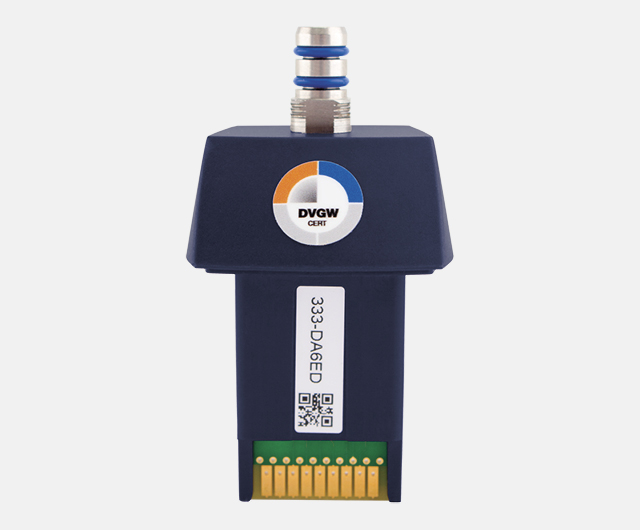

DVGW-tested unit for leak tightness checks of gas pipes according to TRGI. This pressure sensor measures up to 2 bar, and features one D8 mm pressure connection.
Application
Sensor unit for measurement of pressure and vacuum of non-corrosive, gaseous, dry media.
The high quality sensors are extremely accurate, orientation independent and temperature compensated.
| General data |
|
| Dimensions H x W x D |
74 x 42 x 35 mm |
| Weight |
approx. 34 g |
| Measurement units |
hPa, mbar, kPa, mmWs, mmHg, bar, inHg, psi |
| Medium |
non-aggressive gases |
| Measuring range |
2 bar |
| Accuracy |
±0.3 hPa or 0.5 % RDG ±1 digit |
| Resolution |
0.1 hPa (< 1000) |
| 1 hPa (> 1000) |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Connection |
1x D8 |
| Battery life |
45 h / 32 h (rechargeable) |
| BlueLine CAPBs program |
Pressure, Pressure loss, Tightness test, Leakage rate measurement |
| Directives and standards |
2014/30/EU (CE) |
| 2011/65/EG (RoHS) |
|
| 2012/19/EU (WEEE) |
|
| Ingress protection rating |
IP40 (DIN EN IEC 60529) |
|
