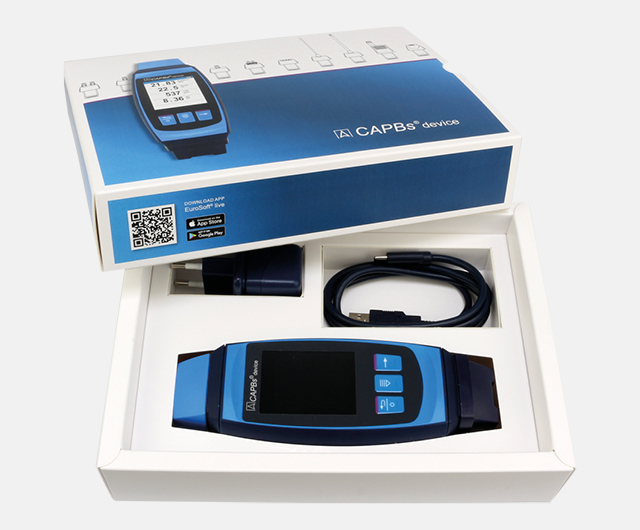

The CAPBs® device is a display unit for all CAPBs® sens. CAPBs® are modular: Different sensor units can be connected, resulting in numerous application solutions.

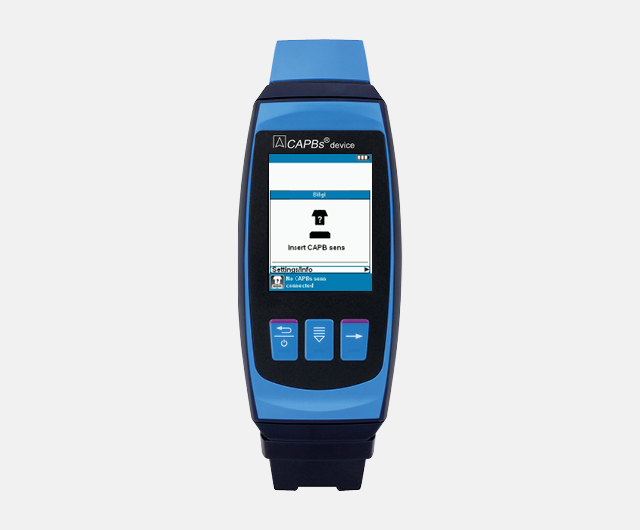

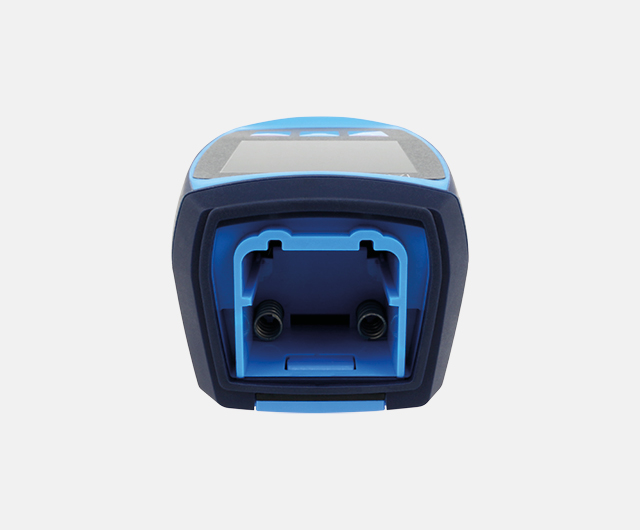

Modular display unit for all CAPBs® sens. The sensors can either be installed on top or bottom side. The 2.4" screen shows directly the measured values of the installed CAPBs® sensor. Via the CAPBs® device QR code generator or Bluetooth® the values could be transferred to the EuroSoft® live app to create professional measurement reports. The instrument is equipped with three navigation keys, magnets at the rear of the housing and a integrated beeper for audible signals.
| General data |
|
| Dimensions H x W x D |
155 x 62 x 42 mm |
| Weight |
approx. 220 g |
| Material housing |
Plastic (PC+ABS) |
| Display type |
2.4" TFT (240 x 320 pixels) |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
-20 to 50 °C |
| Data interface |
Bluetooth® (range: 50 m), QR code |
| Power supply |
USB-C mains unit |
| Battery type |
Rechargeable lithium-ion battery 3.6 V / 1,600 mAh |
| CAPBs sens exchangeable |
yes |
| Ingress protection rating |
IP54 with plugged in CAPBs sens (for water application) and interface (DIN EN IEC 60529) |
| Product brochure |
CAPBs® catalog
|
|
 |
 |
|
The free EuroSoft® live App allows to transmit measured values to iOS and Android smartphones or tablets via QR code or Bluetooth®.
Software for processing and visualisation of measurement results and logs of CAPBs® measuring instruments.

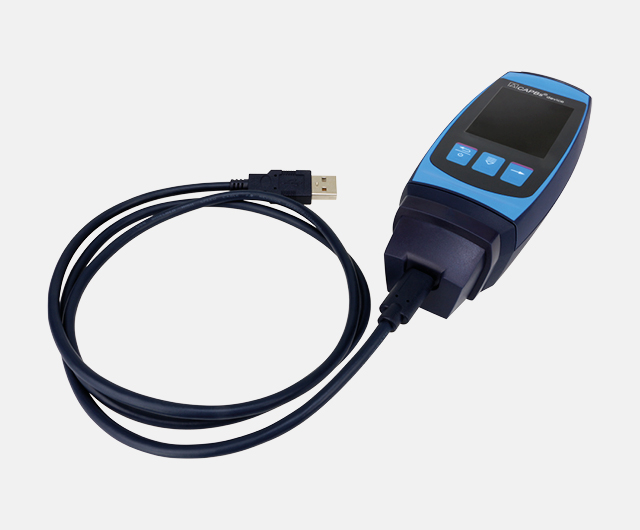

Interface unit IF10 for charging, power supply and firmware update of the CAPBs® device.

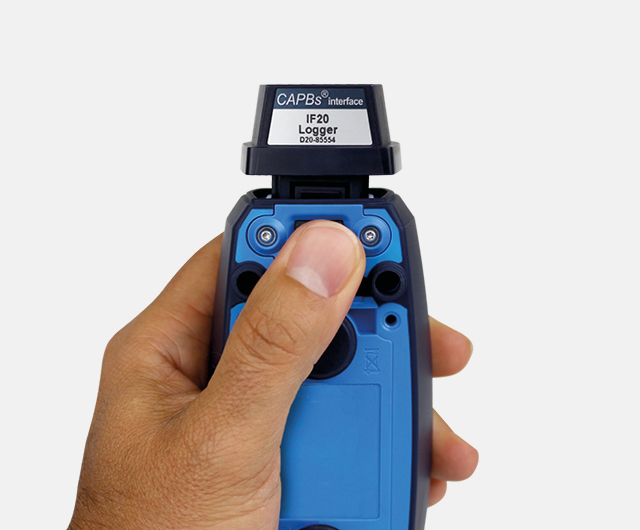

Logger unit IF20 for logging, charging, power supply and firmware update of the CAPBs® device.
Sensor unit for measurement of carbon dioxide (CO2). The highly accurate CO2 infrared sensor has a very low drift and can be adjusted in fresh air.
Sensor unit for measurement of carbon dioxide (CO2), humidity and temperature. The highly accurate CO2 infrared sensor has a very low drift and can be adjusted in fresh air.
Sensor unit for fast and reliable detection of carbon monoxide (CO) in ambient air.
Sensor unit for air flow speed and volumetric flow rate and temperature measurement. Also for 4-Pa testing using the CAPBs® module.
Sensor unit for fast and reliable gas leak detection. The flexible probe makes use in areas that are difficult to access possible.
Sensor unit for measuring fine pressure and differential pressure up to 20 hPa. Also designed for accurate air-flow measurements using a Pitot tube.

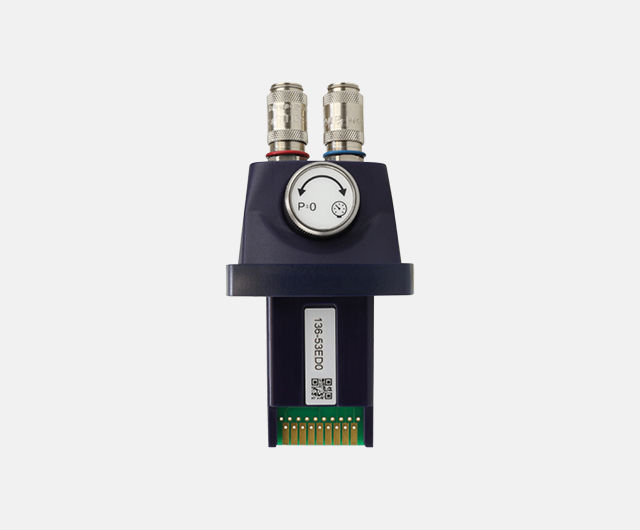

Sensor unit for measuring the pressure, vacuum and differential pressure of non-corrosive, gaseous, dry media. This pressure sensor measures up to 180 hPa, and features two D8 pressure connections.
Sensor unit for tightness and load testing up to 180 mbar test pressure. The CAPBs® sens PS22 is extremely accurate, orientation independent and temperature-compensated.

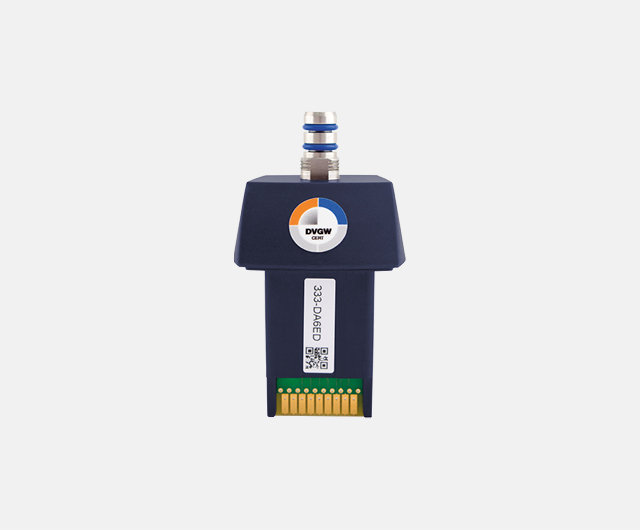

DVGW-tested unit for leak tightness checks of gas pipes according to TRGI. This pressure sensor measures up to 2 bar, and features one D8 mm pressure connection.
Sensor unit for leaktightness and load testing up to 6 bar test pressure. The high quality sensors are extremely accurate, orientation independent and temperature compensated.
Sensor unit for leaktightness, load and stress testing up to 25 bar test pressure. Pressure transmitter for measurements in gaseous and liquid media.
Sensor unit for measurement of the pressure, vacuum and differential pressure of gaseous and liquid media. This pressure sensor measures up to 7 bar.
Sensor unit for measurement of the pressure, vacuum and differential pressure of gaseous and liquid media. This pressure sensor measures up to 20 bar.
Sensor unit for temperature and relative humidity measurements in ambient air.
Temperature transmitter with standardised temperature socket type K. This allows for the connection of all type K temperature probes.
Temperature transmitter with two standardised temperature socket type K. This allows for the connection of all type K temperature probes.

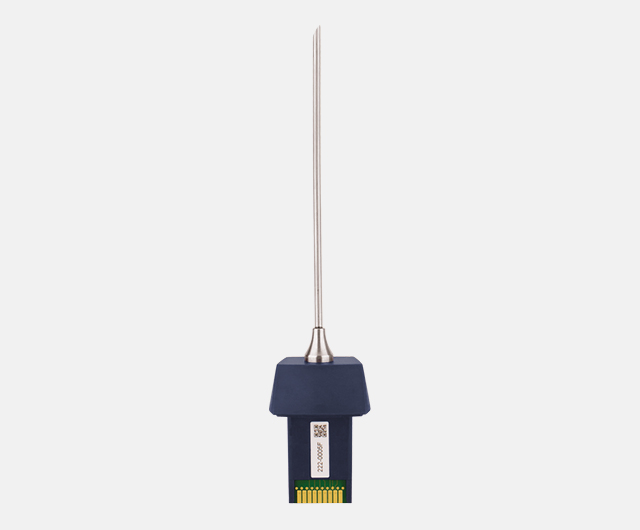

Sensor unit for temperature measurements in soft plastic media with the pointed penetration probe.
Sensor unit for temperature measurements in liquids with the D1.5 temperature probe.

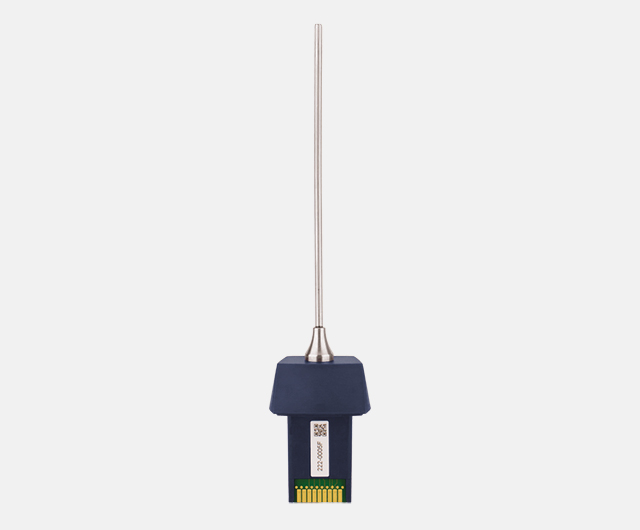

Sensor unit for measurement of the temperature in liquids with the D3 temperature probe.
